General Motors has produced great overdrive automatic transmissions, and the two transmissions you will hear a lot about are the 700R4 and the 4L60. These are really the same transmission, but were renamed over the years, and are considered a terrific and well-made transmission.
- Alpha Rider Front Pump Alignment Band Transmission Tool For Transmissions 250, 250C, 350, 350-C, 375, 400, 3L80, 3L80-HD, 425, 475, 700-R4, 4L60, 4L60E 4.6 out of 5 stars 98 $22.99 $ 22.
- Automatic Transmission, Forward Shift Pattern, Automatic/Manual Valve Body, Chevy, 4L60E, 1993-95, 4WD, Each. Part Number: HUP-74-1CE Not Yet Reviewed.
- 4L60 The 4L60 transmission was the primary transmission part of plenty of General Motors rear-wheel drive vehicles for almost two decades since the release. Over time, the manufacturers released several other modifications that worked different in various cars.
Key Components to the700R4 and 4L60
This transmission is positioned longitudinally and has an automatic four-speed. This family of transmissions uses a two shift solenoid. By activating and deactivating these solenoids in a specific pattern, you can get four distinct gear ratios. The transmission is constructed from cast aluminum alloy. It also utilizes a lockup torque converter. A square oil pan is also standard with this transmission type. Many performance vehicles use this transmission.
When the 700R4 came out in 1982, there was pressure to increase the fuel economy of new vehicles. The transmission was used in rear-wheel drive cars and trucks. Truck transmissions use a slightly thicker case. The biggest feature of the 700R4 was the thirty percent overdrive. Changes and improvements were made over the years the 700R4 was produced (1982 – 1990). Early versions of this transmission had a cooling circuit that used ¼ “pipe fittings, while later versions were changed to an O-ring and pinned flare design.
The 4L60 however is hydraulically shifted based on governor pressure and throttle valve (TV) cable position. 1992 was the last year of widespread usage of the 700R4 (4L60). The 1993 Camaro, Corvette and Typhoon were equipped with the last production 700R4. The last design change of the 700R4 was an added checkball to the valve body. GM TH700R4 / 4L60 & Early 4L60-E Automatic Transmission The TH700R4 is an automatic shift, four-speed overdrive, longitudinally positioned transmission. It is now considered to be one of the finest overdrive automatic transmissions ever produced.
Watch this video on YouTube
The 700R4 uses a 4 pin electrical connector and a TV cable. This TV Cable was very sensitive to adjustments and would fail if not adjusted properly. The TV cable is not used on the 4L60-E. The older versions also had a tendency to have seal and gasket leakage. This issue was fixed as improvements were made over the years.
The 700R4 had twenty-seven splines on the input shaft. When this transmission was renamed as the 4L60 in 1990, some small changes had been made, such as increasing the splines on the input shaft to thirty. The name 4L60 stands for 4-speeds, longitudinally placed, and 6000 pounds gross vehicle weight. By 1998 the 4L60-E was released broadly by GM in both 2 and 4 wheel drive vehicles.
In 1993 the biggest change occurred, and the 4L60 changed to the 4L60-E. The hydraulic shifting system was changed over to an electronic system. The transmission’s transmitting core mechanically remained the same, but the clutch/band actuation systems and valve body were now controlled electronically.
Watch this video on YouTube
The primary feedback sensor was also changed at this time to a Vehicle Speed Sensor, or VSS. This was and improvement and actually a simplification of the transmission design. The 4L60-E also underwent some changes over time. One improvement was the installation of removable bell housing. The tailhousing/adapter pattern was also modified to a rear, six bolt hex pattern.
Either one of these makes a great conversion transmission, and is adaptable for most Jeeps. Many Jeep owners switch to this transmission and benefit from a 25-30% drop in fuel consumption.
The 700R4 and 4L60 transmissions are some of the finest that GM has ever made.
The 4L60E transmission came onto the scene back in 1992. It served as a replacement or an upgrade to the 700R4 transmission, which was also known as the 4L60 transmission. Both transmissions were mostly similar. But the major difference came from the upgrade coming from hydraulically to electronically controlled transmissions. The transmission which was developed and produced by General Motors/Hydramatic, became widely available in a large number of GM vans, SUV and truck applications. It was also available in many rear-wheel drive car applications too. Some of the most popular car applications include the Chevrolet Corvette, Camaro, Impala and more.
The Good And The Bad
The 4L60E can be classified into both an early version as well as a late version. Given such, the differentiation occurred in 1996. With many variations, the easiest to recognize externally is the removable bell-housing found on the late model 4L60E transmissions. As the arrived in 1996, it was not fully created in until 1998. With this transmission not as widespread as it once was, there are still some applications that GM uses for this 1998 transmission. This transmission can still be found in light-duty van applications and even in the overseas market in the Holden Commodore.
The popularity of this transmission was based on many of the carryover features. The low speed performance capability was one of them. Additionally, the transmission also featured strong fuel economy performance. Then, there was the addition of the electronic control that improved the performance of this transmission tremendously. Given its performance, there were common issues with the transmission; the component’s ability to use the reverse gear was seen as a grave issue. This was generally caused by buildup of debris.
4L60E Performance Specs
The 4L60E transmission is equipped to withstand as well as a handle the max engine torque of 360 lb.-ft. Additionally, the 4L60E’s name states a tremendous amount about the transmission. The number 4 in the title indicates that the transmission is a 4 speed transmission. The L in the title signified that the transmission as an engine that sits longitudinally. The 60 in the name signifies that there is 6000 pounds of GVW.
Why Is The 4l60e A Bad Transmission? Is It The Worst Ever Made?
For many, the 4L60E transmission is a good transmission, but for others, it appears as if it is the worst transmission ever made. One GM owner stated: “My opinion is that the 4L60E is not the worst transmission ever made. Did you buy the truck new or used? If used, then one has no idea exactly what the transmission went through before you bought it.”
Another 4L60E owner added: “The 4L60E is as common as the TH350 except it is newer and bigger. No, its definitely not the most defective transmission on the road. Most all vehicle manufacturers have their “Problem children”. When I was at the Oldsmobile GMC dealer back in the 80’s it seemed that all I ever worked on was the 440T4. They would be lined up out the door and I made a ton of money on them. They were replaced by the 4T60 and 65E’s. Aftermarket has pretty much taken over with the 4L60E’s much like the TH350’s. There are aftermarket parts I prefer to use in my overhauls of these. GM had some design flaws in these which got corrected by GM and the aftermarket. I, personally would rather have a fresh built HD 4L60E any day than some of these newer models coming on the market.”
How Can I Tell If My 4l60e Transmission Is Bad?
When it comes to troubleshooting the 4L60E, you have to keep in mind that the automatic transmission (4L60-E) in your rear wheel drive GM vehicle will usually experience failure in one of two ways:
The Transmission Will Begin Slipping
- Internal mechanical failure will be the cause of transmission ‘slippage’.
- Your transmission fluid will appear at a low level. This is generally due to a fluid leak somewhere which will result in the transmission slipping.
Transmission Fails to Shift Out of Gear
- Generally, this problem will arise when the PCM will sense an electrical issue and commands the transmission not to move and stay in “limp mode”.
- While the transmission is in “limp mode”, the automatic transmission will fail to downshift or upshift.
How Long Do 4l60e Transmissions Last?
Different 4L60 owners offer their perspective on the longevity of the 4L60e transmission:
Owner Number One:
“It really depends who you ask. Some say it's on borrowed time, and others will say it will be fine as long as it shifts good and all. I'm somewhat in the middle. I'd be a little hesitant, but I also wouldn't be terribly worried of I drove it and it felt good with no slippage or harsh shifts.”
4l60e Identification
Owner Number Two:
“I have close to 300k on my truck back in the day before I sold it. [The] 4l60e from 1996 held up well. Reverse [kind of] was finicky, every now and then it would slip but had a good life. I honestly think around 250-300k it should be rebuilt if its original.”
Owner Number Three:
“To answer it in short, I took [$2000] put it aside for the [transmission], learned over the fourteen years I’ve owned it, [that it’s a matter of not if, it’s when]. [I changed] the fluid regularly and found adding a bottle of Lucas non slip is the best thing. Typically [I] think most that stuff is snake oil but I’m telling you it works, keeps solenoids from sticking too. I do it yearly. Don’t use [overdrive], unless you’re going over 60, you’ll get the same mileage and won’t be wearing the 3-4 out. I drive it easily in 1st till its in 2nd then slowly give it more throttle. Driving it hard that 1-2 shift seems to shorten life How do I know, I’ve been through 5 of these. Just my opinion. [My first transmission] lasted less than 100 miles. [The] last one lasted close to 100k [miles]. Seems most of these around 40-50 can go.”
Hope you make 300k. [If you do, I would be] shocked. Go easy on them they aren’t all that great, [in my opinion].”
Owner Number Four:
“I would be more interested in the number of shifts before failure. Wear in a transmission in my opinion- mainly occurs during shifts. Once the transmission is in a gear it should see very little wear. Towing and heavy abuse increases fluid temps and reduces lubrication resulting in more wear during shifts. Yes, clutches wear but that is mainly when they slip during application and release. So, to just go off mileage alone is probably not the best way to judge. A 4l60e that has 300k miles from towing between the coasts could be in better shape than one with only 50k miles on it that was stop and go with thousands of shifts per day.”
What Is the Difference Between A 4l60 And A 4l60e Transmission?
The biggest difference between the 4L60 and 4L60E is how both are controlled. For 4L60E control comes from a computer. For the 4L60, control comes form a TV cable. With one being controlled by computer and the other not, there are compatibility issues that the two have.

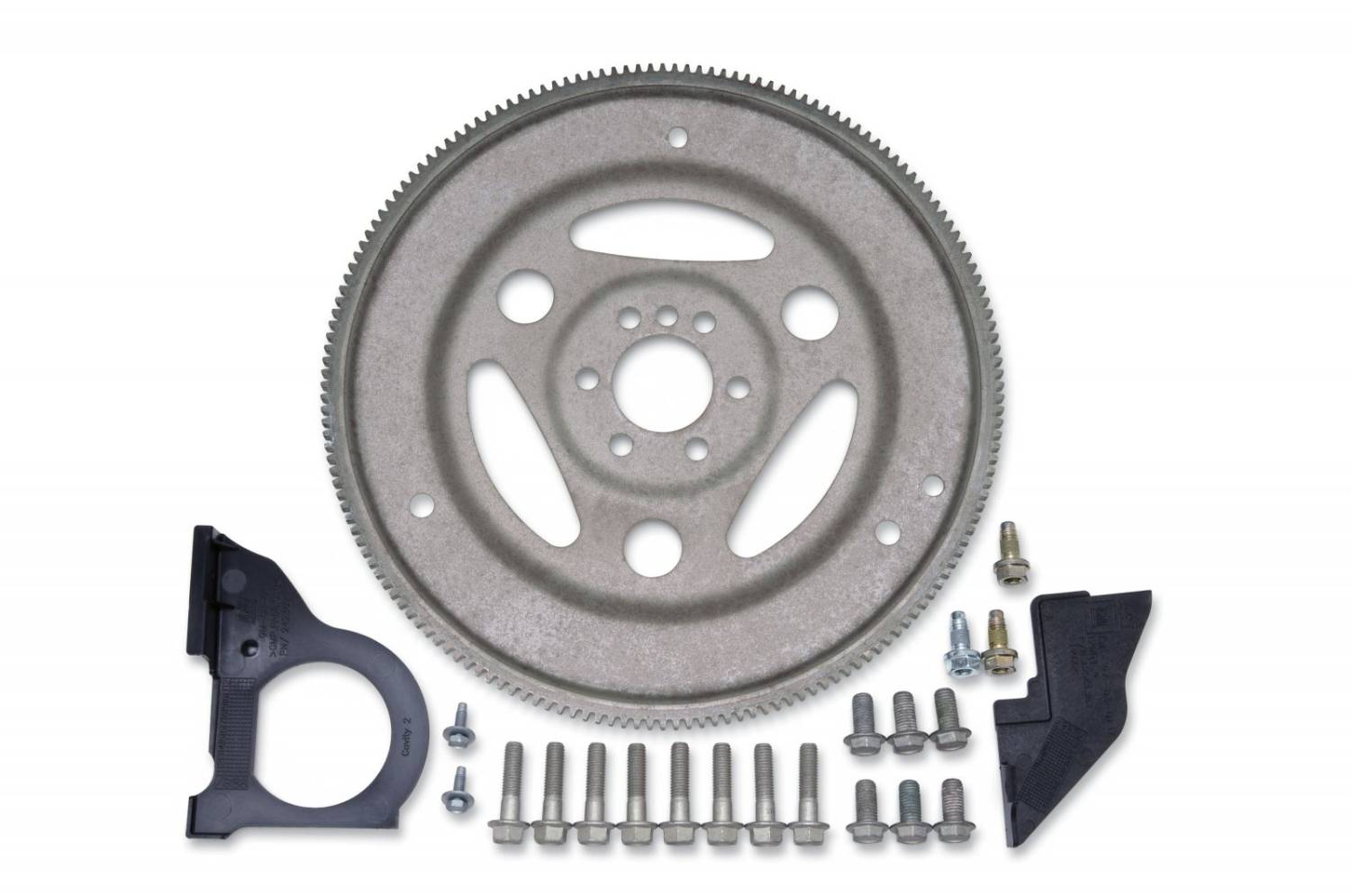

If you tried to put a 4L60E transmission in the place where a 4L60 once resided, prepare to buy an aftermarket transmission controller so that you can control it.
If you don’t, it will not know when to kick down, when to shift or the speed of the vehicle. The 4L60 transmission would require a custom bracket to hook into the TV cable properly. Additionally, when comparing both transmissions, they don’t also don’t have the same geometry for engaging the torque converter. As a result, you will need torque converters to accomplish engagement.
Similarities Between The 4L60 and 4L60E Transmissions
Sure, the 4L60 and the 4L60E have some differences, but there are some things that they share. Some of the similarities include:
- Both transmissions have the bellhousing bolt pattern.
- Both transmissions also use the same bolt pattern as well as the same transmission pan.
- They have the same length.
- Both the 4L60E and 4L60 have the same number of gear ratios as well as the same number of gears.
Common 4l60e Transmission Problems
Below is a partial list of some of the most common 4L60E transmission problems:
Slipping, Slow or No Reverse Available
Many owners find that the “lo-reverse” clutches are beat up or worn out. There is also a fluid leak located in the reverse apply circuit. Additionally, there is a broken sunshell.
The 1-2 shift is harsh and delayed
Not only do 4L60E transmission owners experience a delay or harshness in 1-2 shift, but there have also been reports of an inability to shift into overdrive.
The 3-4 Clutches Are Not Working and Quickly Worn Out
The 3-4 clutches are reportedly quick to wear out. So, as a result, they will need to be rebuilt after being removed. You can drive the car safely in 2 till you can get to a mechanic.
